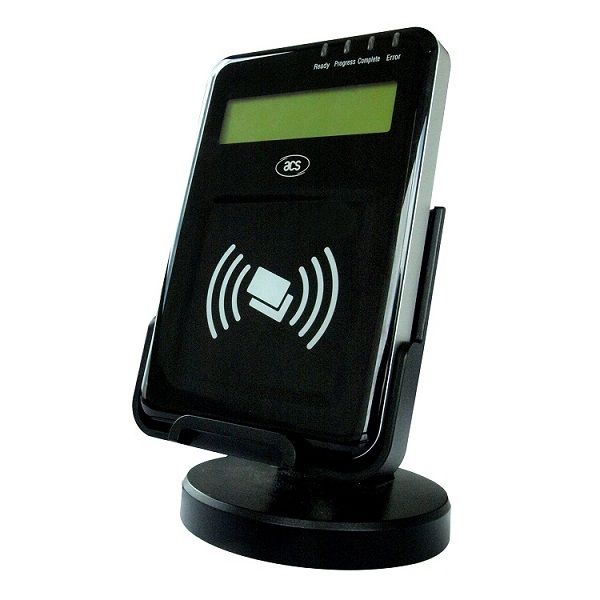

ACS ACR1222L VisualVantage NFC lezer met LCD

The ACR1222L (VisualVantage) is a PC-linked, USB-powered NFC reader that combines contactless smart card functionality with a built-in two-line graphic LCD. It supports a wide range of RFID and NFC standards, making it a versatile choice for applications like payments, access control, and customer loyalty.

Key Features

• Broadcompatibility – Works with ISO 14443 A&B cards, including MIFARE, DESFire, FeliCa, and all four NFC Forum tag types.

• High-speed reading – Up to 424 kbps with a contactless range of approximately 50 mm (depending on tag type).

• Secure operations – Features three built-in ISO 7816 SAM (Secure Access Module) slots for enhanced cryptographic functionality.

• Interactive display – Two-line graphic LCD supports multiple languages and offers intuitive scrolling and menu navigation.

• User feedback tools – Includes four user-controllable LEDs and a buzzer for customizable status alerts.

• Auto card collision prevention – Accesses only one tag at a time for reliable operation where multiple tags are in proximity.

• Future-ready – Firmware is upgradeable via USB to maintain compatibility with evolving protocols.

• Standards compliant – Follows USB CCID, PC/SC, and CCID specifications for broad platform support.

Technical Specifications

Typical Applications

Ideal for interactive, secure environments such as retail POS systems, access terminals, loyalty kiosks, self-service stations, and desktop authentication tools. The LCD and LEDs enhance user experience through immediate visual feedback.
